कैबिनेट ESS 258KWH 289KWH 385KWH LiFePO4 ऊर्जा भंडारण कैबिनेट औद्योगिक और वाणिज्यिक ऊर्जा भंडारण कैबिनेट
व्यक्ति से संपर्क करें : Rosa Liu
फ़ोन नंबर : +86 18975107916
WhatsApp : +8618975107916
| न्यूनतम आदेश मात्रा : | 1 इकाई | मूल्य : | विनिमय योग्य |
|---|---|---|---|
| पैकेजिंग विवरण : | लकड़ी के मामले और कार्टन केस | प्रसव के समय : | 7-15 कार्य दिवस |
| भुगतान शर्तें : | टी/टी | आपूर्ति की क्षमता : | प्रति माह 10000 यूनिट |
| उत्पत्ति के प्लेस: | हुनान, चीन | ब्रांड नाम: | Chalong Fly |
|---|---|---|---|
| प्रमाणन: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc | मॉडल संख्या: | CLFLE195 |
|
विस्तार जानकारी |
|||
| मॉडल संख्या: | 48V 100AH 200AH सौर बैटरी | OEM/ODM: | स्वीकार्य |
|---|---|---|---|
| स्वनिर्धारित: | हाँ | ||
| प्रमुखता देना: | 80Ah Large Capacity Lithium Battery,IP67 Protection Marine Lithium Battery,Parallel Operation Industrial Energy Storage Battery |
||
उत्पाद विवरण

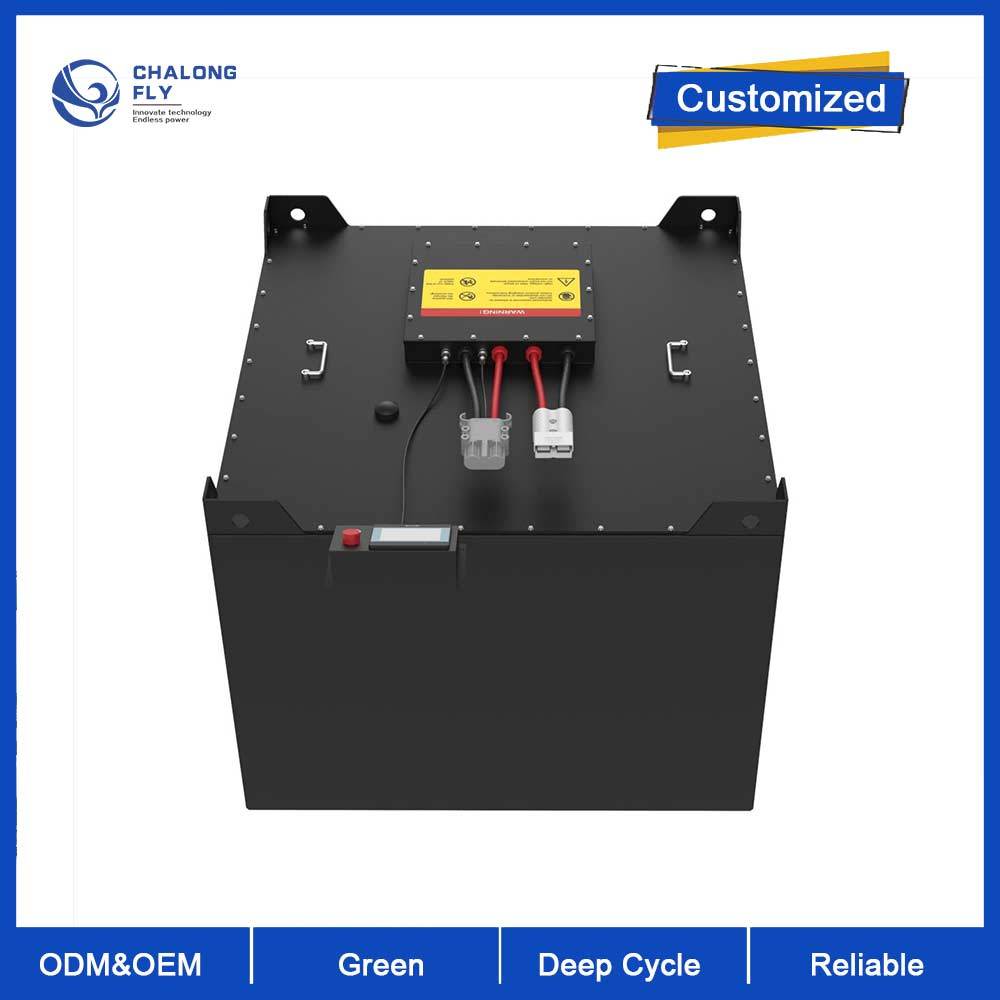

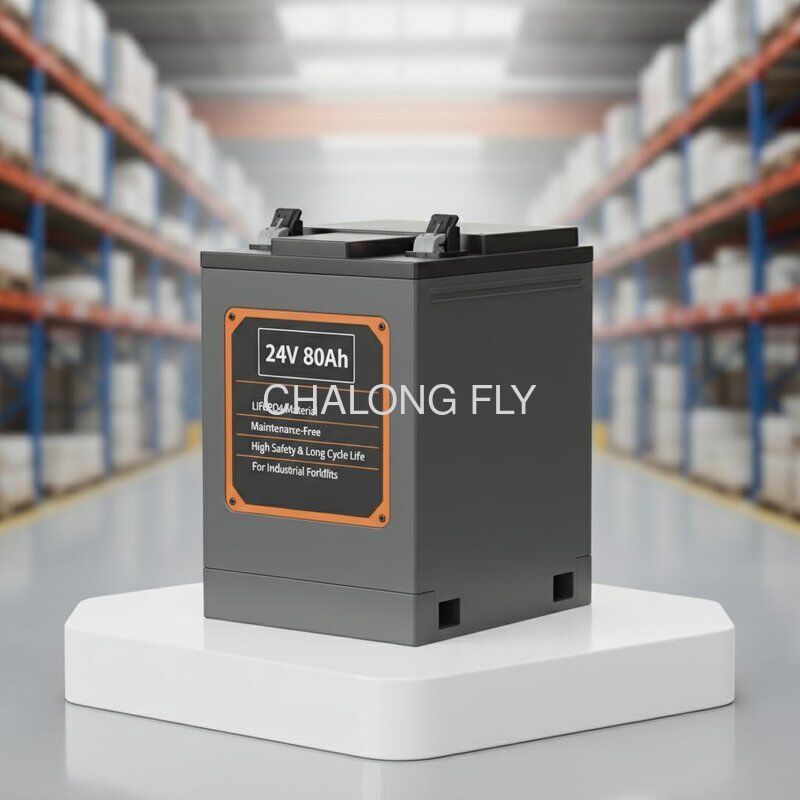

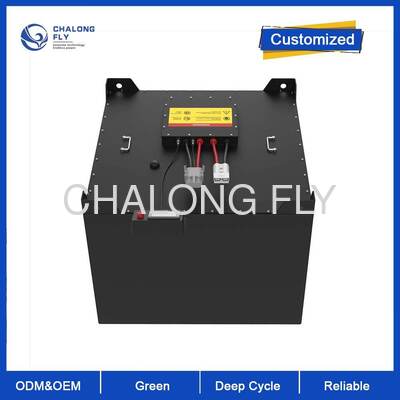

The 24V 80Ah forklift lithium battery is specially designed for industrial forklifts, adopting high-quality LiFePO4 battery cells. It features fast charging, long cycle life, maintenance-free operation, and excellent safety performance, which can completely replace traditional lead-acid batteries. It effectively solves the pain points of lead-acid batteries such as heavy weight, frequent maintenance, short service life and environmental pollution, and provides stable and efficient power support for forklift operations in warehouses, factories, logistics parks and other scenarios. It conforms to international certification standards and ensures safe and reliable operation under various working conditions.
| Parameter Name | Specification |
|---|---|
| Nominal Voltage | 24V |
| Nominal Capacity | 80Ah |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | ≥3000 cycles (at 100% DOD, 25℃) |
| Charging Voltage | 28.4V - 29.2V (CC/CV Charging Mode) |
| Charging Time | 1-2 hours (0-100% capacity) |
| Continuous Discharge Current | 200A |
| Peak Discharge Current | 250A (7.5s ±2.5s) |
| Self-Discharge Rate | <3% per month (25℃) |
| Operating Temperature Range | Charging: 0℃ - 50℃; Discharging: -20℃ - 55℃ |
| Storage Temperature Range | 0℃ - 40℃ |
| Protection Level | IP65 |
| Battery Weight | 21kg (46lbs) |
| Dimensions (L*W*H) | 290*240*243mm |
| Certifications | CE, UN38.3, UL, IEC, ISO9001 |
| Warranty Period | 3 years or 3000 cycles (whichever comes first) |
A1: Yes, it can be directly replaced without modifying the forklift's power system. It has the same installation size and interface as the corresponding lead-acid battery, which is convenient and quick to replace, and can perfectly match most 24V forklift models on the market. It is a direct replacement for lead-acid batteries and can be put into use immediately after installation.
A2: Compared with lead-acid batteries, it has four core advantages: first, longer service life, with a cycle life of more than 3000 times, which is 2-3 times that of lead-acid batteries; second, maintenance-free, no need to add water, adjust electrolyte or do other daily maintenance, saving labor costs; third, fast charging, which can be fully charged in 1-2 hours, greatly reducing the waiting time for charging and improving work efficiency; fourth, high safety, adopting LiFePO4 material, which has no risk of explosion or fire even in case of puncture, extrusion or short circuit, and is more environmentally friendly without heavy metal pollution.
A3: Under normal use (1 cycle of charging and discharging per day, 80% discharge depth), the service life can reach 8-10 years, which is far longer than that of lead-acid batteries (3-4 years). The battery still maintains more than 70% of the nominal capacity after 3000 cycles, which can fully meet the long-term use needs of industrial scenarios.
A4: Yes, it can. The battery has excellent low-temperature performance, and the discharge capacity can still reach more than 80% of the nominal capacity at -20℃, which is much better than lead-acid batteries (which lose 30-40% capacity below 0℃). It is suitable for low-temperature working environments such as cold storage and northern cold areas, and can ensure stable power output without affecting forklift operation.
A5: It is recommended to use a special CC/CV (constant current constant voltage) lithium battery charger with a charging voltage of 28.4V-29.2V. Do not use a lead-acid battery charger, which will damage the battery and affect its service life. The charger with matching specifications can ensure safe and efficient charging and extend the battery life.
A6: When storing the battery for a long time (more than 3 months), it is recommended to keep the battery capacity at 40%-60%, store it in a dry, ventilated and cool environment (0℃-40℃), avoid direct sunlight and high-temperature and high-humidity environments, and check the battery voltage every 3 months. If the voltage is lower than 24V, supplement charging in time to prevent over-discharge and damage the battery.
